CFF4A3520R76FA

ITEMS

SPEC

UNIT

Center Frequency [fo]

3520.0

MHz

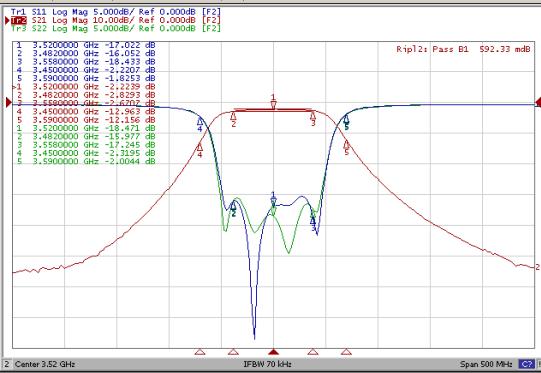

Bandwidth [BW]

fo ±38.0 [3482~3558]

MHz

Insertion Loss in BW

3.2

dB max

Ripple in BW

1.0

dB max

Return Loss in BW

dB min

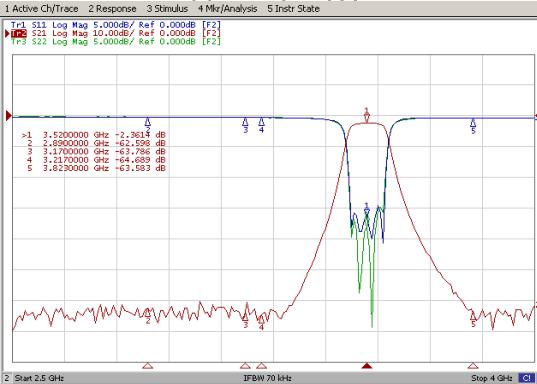

Attenuation

   R Absolute Value

   £ Relative  Value

10.0 dB min.  @ fo ± 70.0 [630&3590]

MHz

60.0 dB min.  @ fo ± 303.0 [3217 & 3823]

MHz

60.0  dB  min.  @ fo ±      [2890&    ]

MHz

35.0dB min.  @ fo ±      [ 3170&  ]

MHz

50.0dB min.  @ fo ±      [ 6340&  ]

MHz

Group Delay Variation

ns max

Input Power

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃
