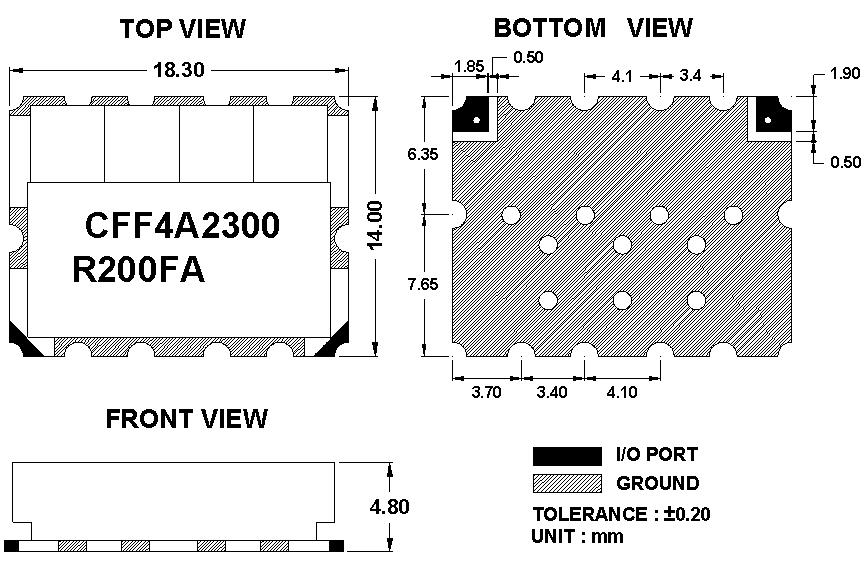

CFF4A2300R200FA

ITEMS

SPEC

UNIT

Center Frequency [fo]

2300.0

MHz

Bandwidth [BW]

fo ±100.0 [2200~2400]

MHz

Insertion Loss in BW

1.2

dB max

Ripple in BW

0.5

dB max

Return Loss in BW

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

30.0 dB min.  @ fo ± [DC ~ 2000.0]

MHz

45.0 dB min.  @ fo ±   [3000 ~ 3400]

MHz

35.0  dB  min.  @ fo ±      [4000~ 6000]

MHz

 dB min.  @ fo ±      [   &  ]

MHz

Group Delay Variation

ns max

Input Power

2.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃
