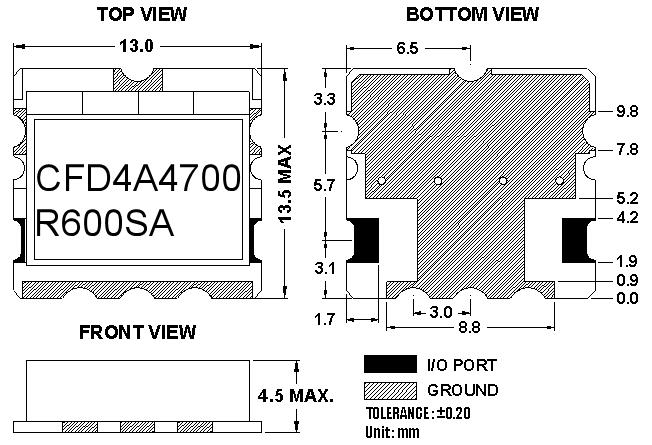

CFD4A4700R600SA

ITEMS

SPEC

UNIT

Center Frequency [fo]

4700.0

MHz

Bandwidth [BW]

fo ±300.0 [3500~3900]

MHz

Insertion Loss in BW

2.0

dB max

Ripple in BW

1.0

dB max

Return Loss in BW

15.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

25.0 dB min.  @ fo ± 4500 [4250~     ]

MHz

10.0 dB min.  @ fo ±  370 [4300 &    ]

MHz

10.0  dB  min.  @ fo ± 450  [    &5150 ]

MHz

  dB min.  @ fo ±      [    &   ]

MHz

Group Delay Variation

ns max

Input Power

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃
