CFD4A3515R31SA
下载产品PDF

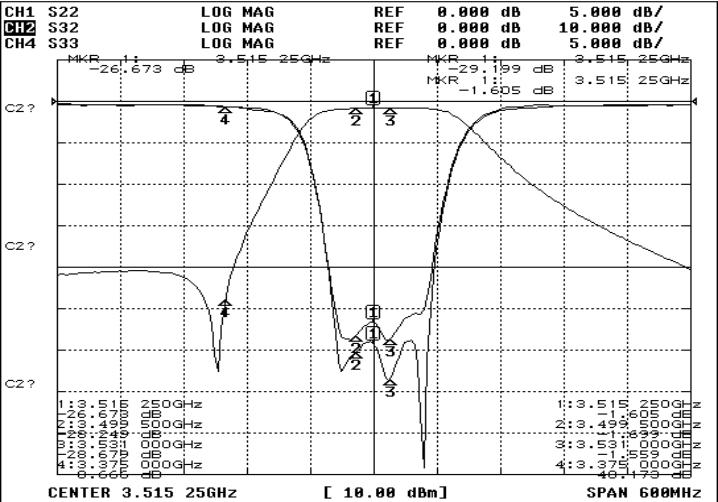

电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
3515.25 |
MHz |
|
Bandwidth [BW] |
fo ±15.75 [3499.5~3531.0] |
MHz |
|
Insertion Loss in BW |
3.0 |
dB max |
|
Ripple in BW |
1.0 |
dB max |
|
Return Loss in BW |
15 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
45.0 dB min. @ fo ± [3375 ~ ] |
MHz |
|
dB min. @ fo ± [ & ] |
MHz |
|
|
dB min. @ fo ± [ & ] |
MHz |
|
|
dB min. @ fo ± [ & ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
3.0 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

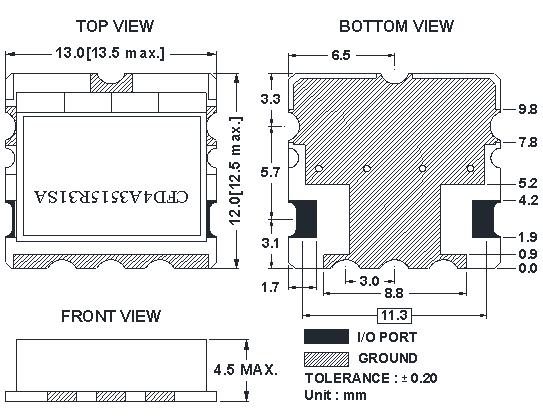

机械规格图
