CFF4P3700R260SA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
3700.0 |
MHz |
|
Bandwidth [BW] |
fo ±130 [3570~3830] |
MHz |
|
Insertion Loss in BW |
1.8 |
dB max |
|
Ripple in BW |
1.0 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
25dB min. @ 4000 |
MHz |
|
25dB min. @ 3400 |
MHz |
|
|
35dB min. @ 3100 |
MHz |
|
|
35dB min. @ 4300 |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
2 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

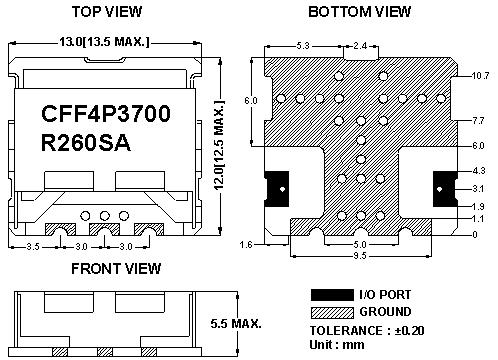

机械规格图

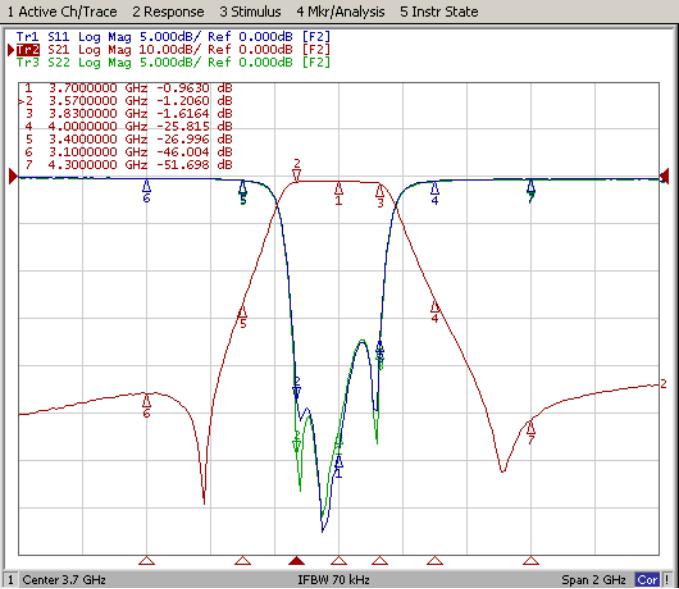

绘图数据

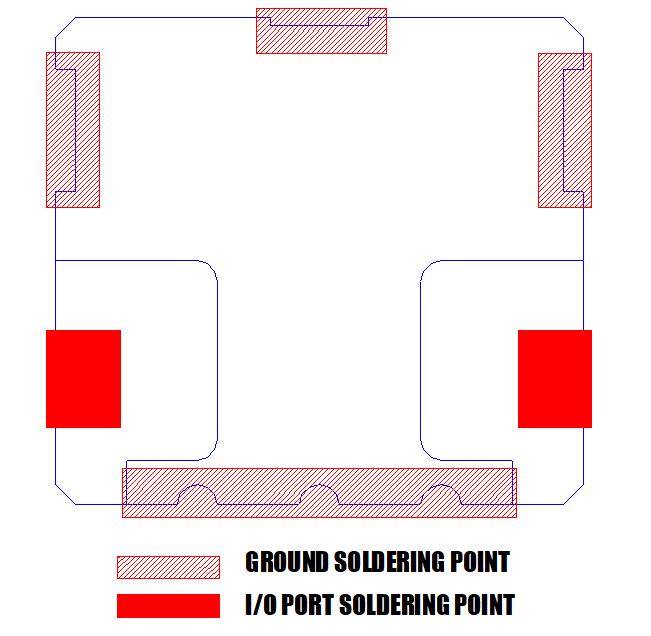

推荐的PC板模式
焊接条件
