Details description

CFK4C2160R60FA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

2140

MHz

Bandwidth [BW]

fo ±30  [2110  ~  2170 ]

MHz

Insertion Loss in BW

3.5

dB max

Ripple in BW

2.0

dB max

Return Loss in BW

14

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

10dBc min @ fo ± [ 2095 ]

MHz

5dBc min @ fo ± [ 2185 ]

MHz

30.0dBc min @ fo ± [  2080  ~     ]

MHz

20.0dBc min @ fo ± [   2200 ~     ]

MHz

Group Delay Variation

150

ns max

Input Power

1

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

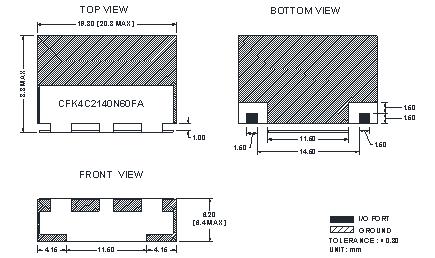

机械规格图

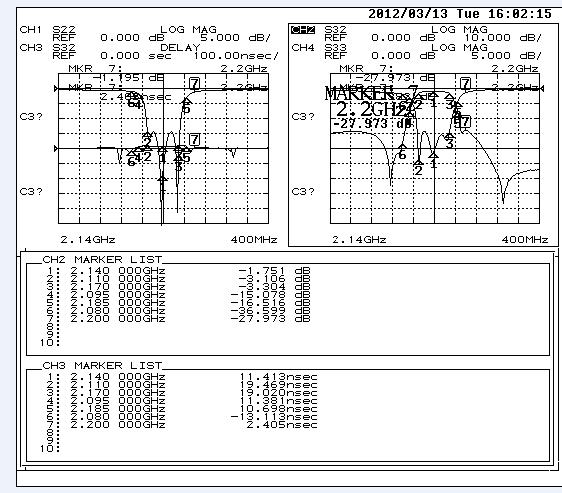

绘图数据

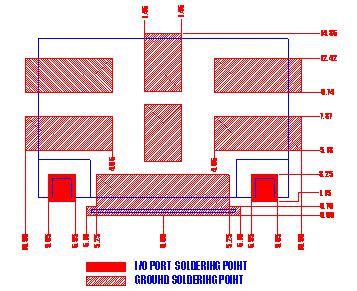

推荐的PC板模式

焊接条件
