CFF4P2140R60SA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
2140 |
MHz |
|
Bandwidth [BW] |
fo ±30 [2110 ~ 2170 ] |
MHz |
|
Insertion Loss in BW |
3.0 |
dB max |
|
Ripple in BW |
1 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
10dB min @ fo ± [ 2090 ] |
MHz |
|
10dB min @ fo ± [ 2190 ] |
MHz |
|
|
45dB min @ fo ± [ 2045 ] |
MHz |
|
|
50dB min @ fo ± [ 1920~ 1980] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
2 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

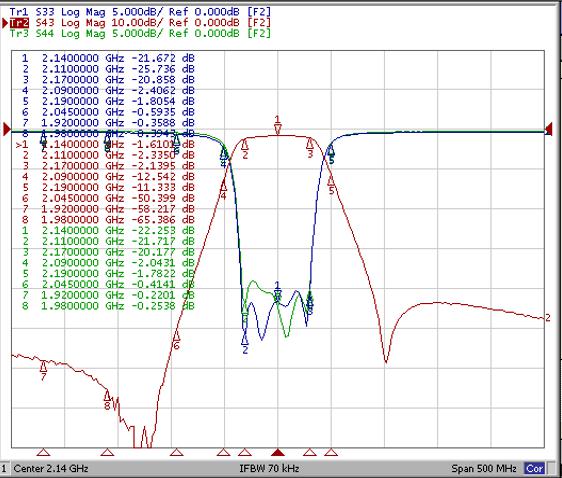

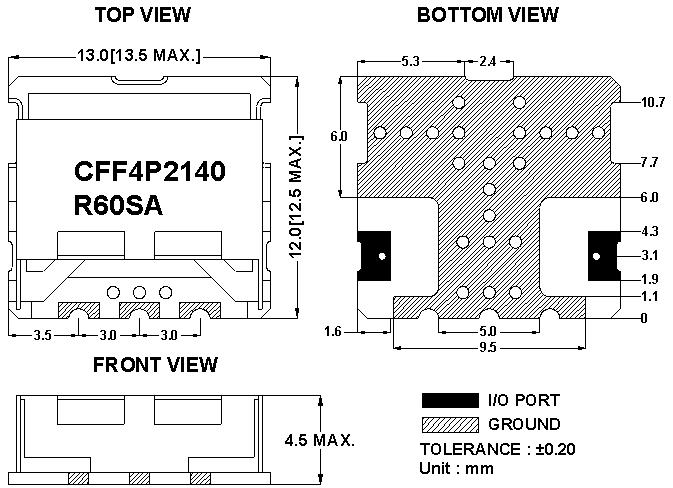

机械规格图
