CFK8P1747N75FA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

1747.5

MHz

Bandwidth [BW]

fo ±37.5 [1710~1785]

MHz

Insertion Loss in BW

4.0

dB max

Ripple in BW

2.0

dB max

Return Loss in BW

15.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

20.0 dB min @ 1795

MHz

50.0 dB min @ 1805~1880

MHz

dB min @ fo ± [  ~  ]

MHz

dB min @ fo ± [  ~  ]

MHz

Group Delay Variation



ns max

Input Power

1

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

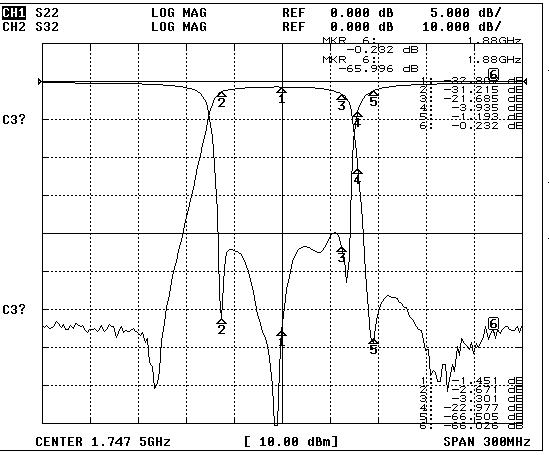

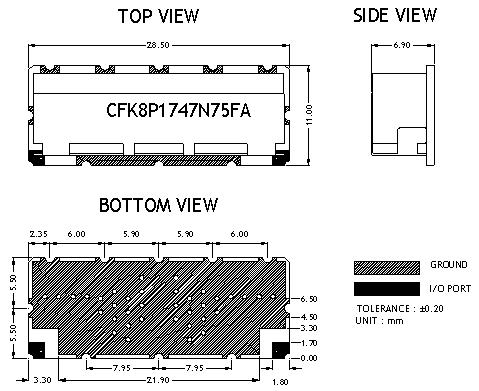

机械规格图
