Details description

CFF4P1842R75SA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

1840

MHz

Bandwidth [BW]

fo ±10 [1830~1850]

MHz

Insertion Loss in BW

3.0

dB max

Ripple in BW

1.0

dB max

Return Loss in BW

18.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

40.0 dB min @ 1742

MHz

45.0 dB min @ 1700

MHz

dB min @ fo ± [  ~  ]

MHz

dB min @ fo ± [  ~  ]

MHz

Group Delay Variation



ns max

Input Power

1

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

机械规格图

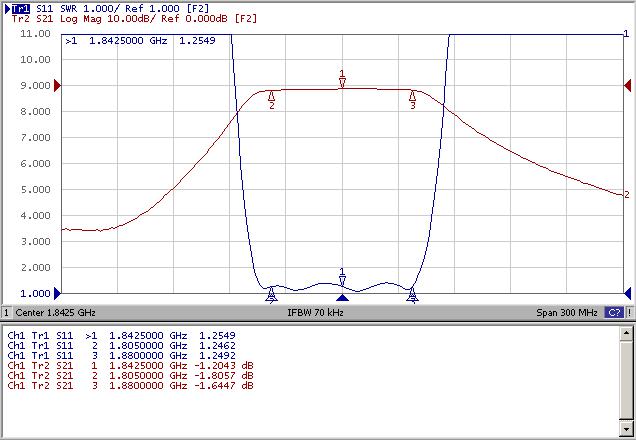

绘图数据

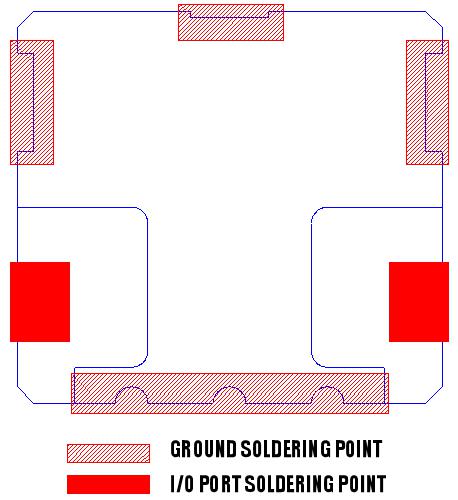

推荐的PC板模式

焊接条件
