CFN10C382R392N05FA

下载产品PDF

电气规格表

ITEMS

ANT >> Low

ANT >> High

UNIT

Center Frequency [fo]

382.5

392.5

MHz

Bandwidth [BW]

fo ±2.5 [380.0 ~ 385.0]

fo ±2.5 [390.0 ~ 395.0]

MHz

Insertion Loss in BW

4.0

4.0

dB max

Ripple in BW

2.5

2.5

dB max

Return Loss in BW

15.0

15.0

dB min

Attenuation

R Absolute Value

£ Relative  Value

50.0 dB min.  @ [150.0 ~ 200.0 ]

57.0 dB min.  @ [150.0 ~ 200.0 ]

MHz

30.0 dB min.  @ [200.0 ~ 350.0 ]

47.0 dB min.  @ [200.0 ~ 360.0 ]

MHz

25.0 dB min.  @ [350.0 ~ 360.0 ]

60.0 dB min.  @ [380.0 ~ 385.0 ]

MHz

18.0 dB min.  @ [387.5 ~ 390.0 ]

18.0 dB min.  @ [385.0 ~ 387.5 ]

MHz

60.0 dB min.  @ [390.0 ~ 395.0 ]

20.0 dB min.  @ [410.0 ~ 425.0 ]

MHz

45.0 dB min.  @ [410.0 ~ 610.0 ]

30.0 dB min.  @ [425.0 ~ 575.0 ]

MHz

dB min.  @ [     ~    ]

45.0 dB min.  @ [575.0 ~ 610.0 ]

MHz

Group Delay Variation



ns max

Input Power

3.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃  to  +85℃

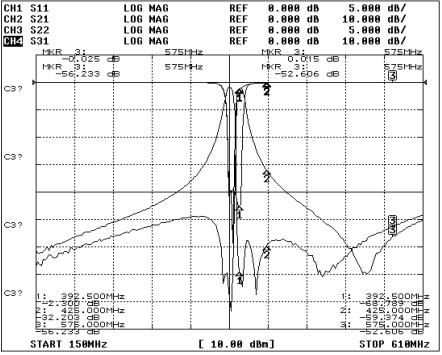

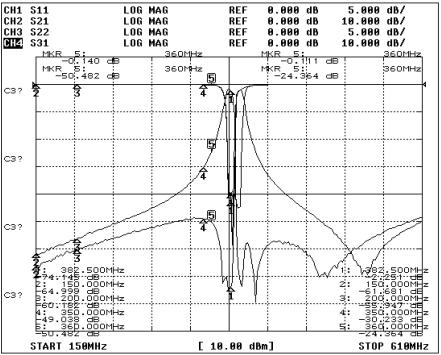

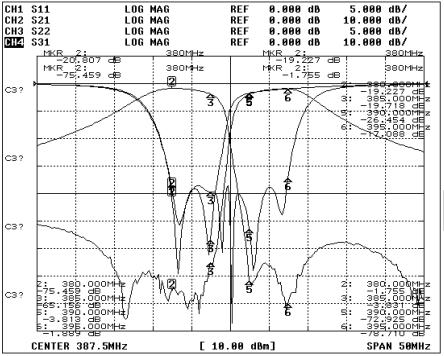

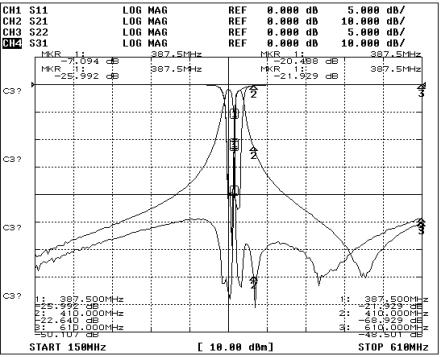

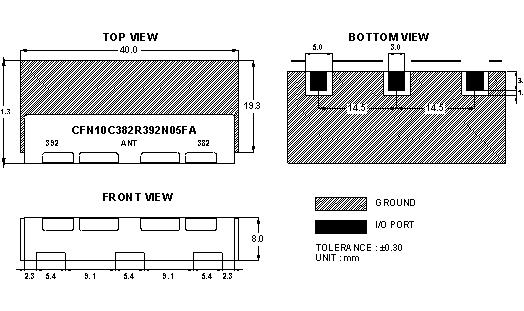

机械规格图

绘图数据

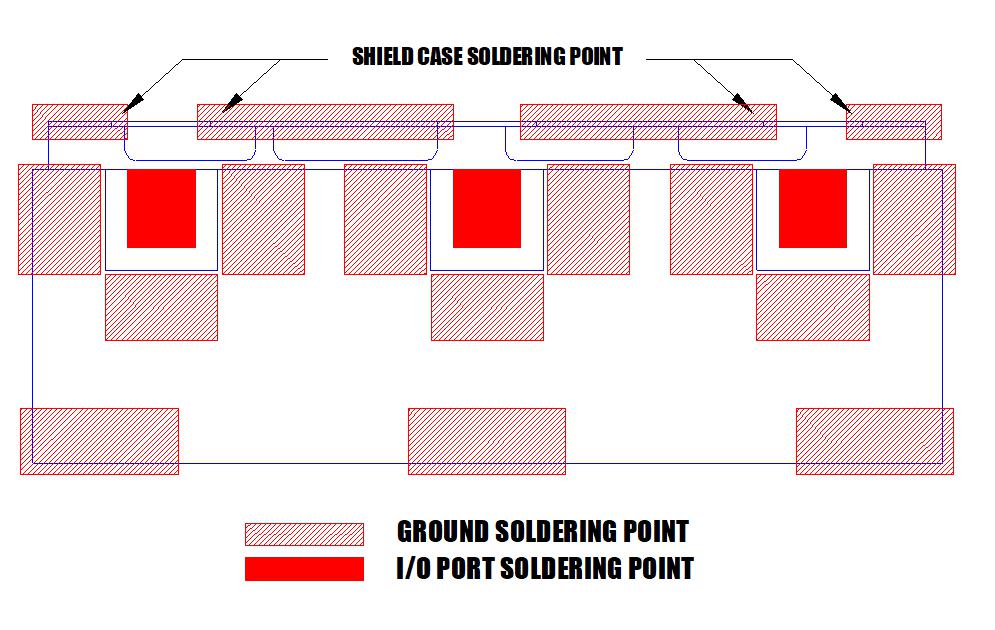

推荐的PC板模式

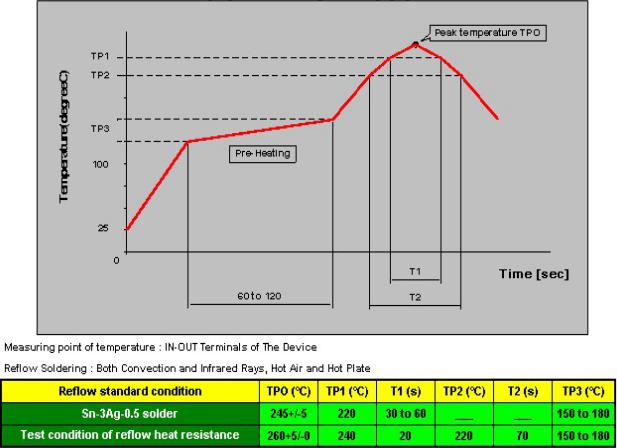

焊接条件
