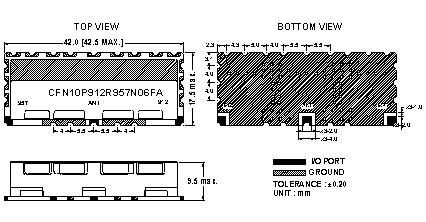

CFN10P912R957N06FA

ITEMS

ANT >> Low

ANT >> High

UNIT

Center Frequency [fo]

912.0

957.5

MHz

Bandwidth [BW]

fo ±3.0[909 ~915]

fo ±3.0[954 ~960]

MHz

Insertion Loss in BW

1.8

1.8

dB max

Ripple in BW

0.8

0.8

dB max

Return Loss in BW

16.0

16.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

60.0 dB min. @[954  ~ 960]

60.0dB min. @[909  ~  915]

MHz

    dB min. @ [    ~     ]

dB min. @ [    ~     ]

MHz

    dB min. @ [    ~     ]

dB min. @ [    ~     ]

MHz

    dB min. @ [    ~     ]

dB min. @ [    ~     ]

MHz

Group Delay Variation

ns max

Input Power

3.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃
