CFF10P1950F2140N60FA
下载产品PDF

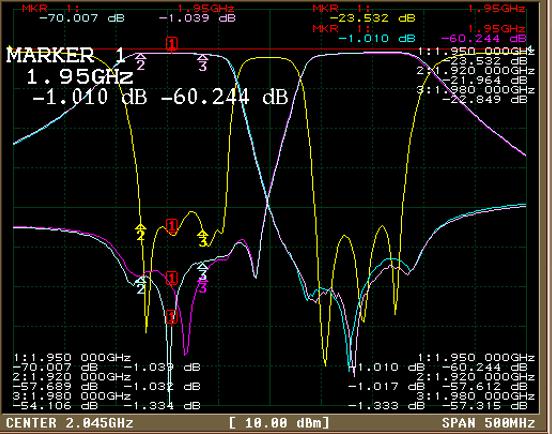

电气规格表
|
ITEMS |
ANT>>LOW |
ANT>>High |
UNIT |
|
Center Frequency [fo] |
1950 |
2140 |
MHz |
|
Bandwidth [BW] |
fo ±30 [1920~1980] |
fo ±30 [2110~2170] |
MHz |
|
Insertion Loss in BW |
2.0 |
2.0 |
dB max |
|
Ripple in BW |
1.0 |
1.0 |
dB max |
|
Return Loss in BW R ANT Port |
18.0 |
18.0 |
dB min |
|
VSW Rin BW R ALL Port |
|
|
max |
|
Attenuation R Absolute Value £ Relative Value |
45dB min @ [ 2110~2170 ] |
45dB min @ [ 2110~2170 ] |
MHz |
|
dB min @ fo ± [ ~ ] |
dB min @ fo ± [ ~ ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
dB min @ fo ± [ ~ ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
dB min @ fo ± [ ~ ] |
MHz |
|
|
Group Delay Variation |
dB min@[ ~ ] |
ns max |
|
|
dB min@ [ ~ ] |
|
||
|
Input Power |
3 |
W max. |
|
|
In/Out Impedance |
50 Ω |
||
|
Operation Temperature Range |
-40℃ to +85℃ |
||

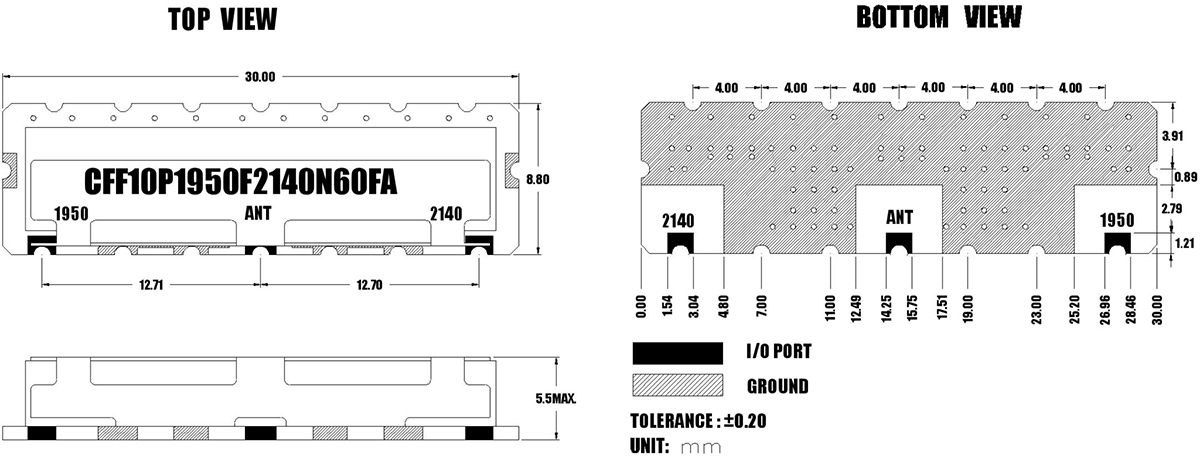

机械规格图
绘图数据

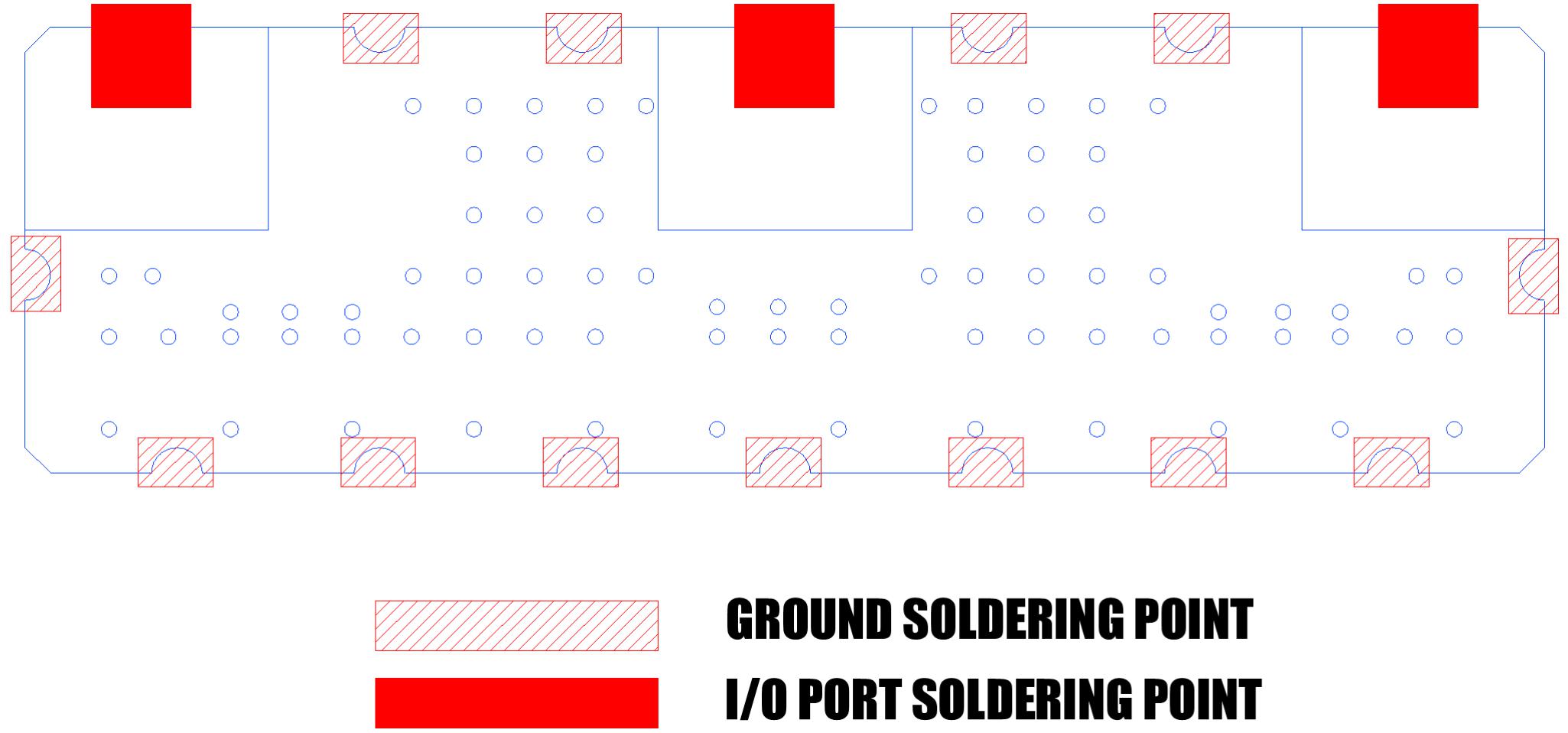

推荐的PC板模式
焊接条件
