Details description

CFH4C1221R130FB

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

1221.0

MHz

Bandwidth [BW]

fo ±65.0 [1156.0 ~ 1286.0]

MHz

Insertion Loss in BW

0.6

dB max

Ripple in BW

0.5

dB max

Return Loss in BW

15.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

25.0 dB min @ fo -400.0  [821.0 ~   ]

MHz

25.0 dB min @ fo +400  [1621.0 ~   ]

MHz

dB min @ fo ±      [     &      ]

MHz

dB min @ fo ±      [     &      ]

MHz

Group Delay Variation



ns max

Input Power

1.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃  to  +85℃

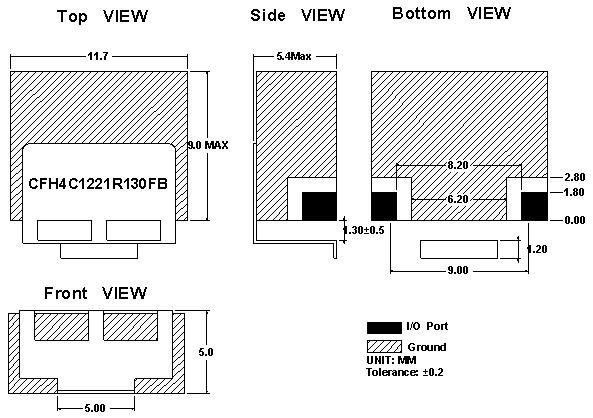

机械规格图

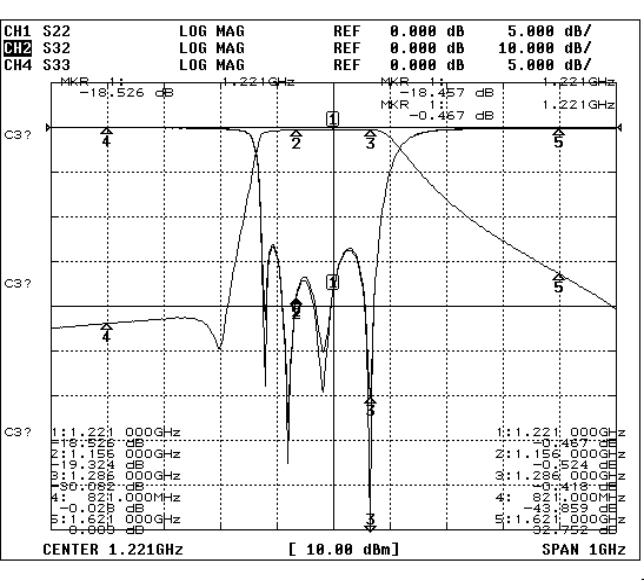

绘图数据

推荐的PC板模式

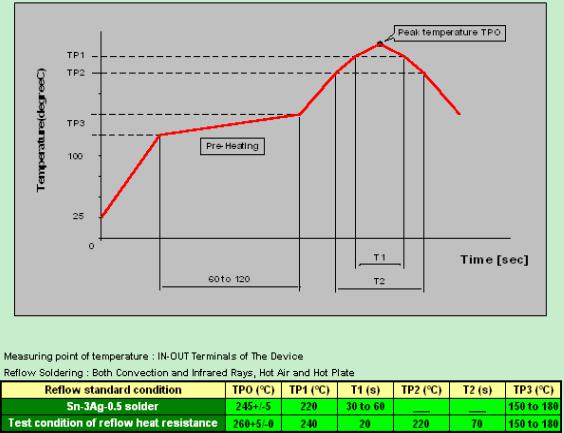

焊接条件
