CFD4A506R69SA

下载产品PDF

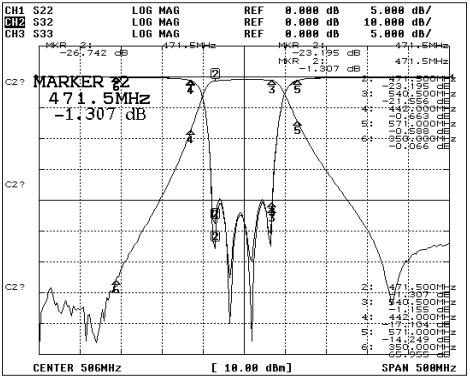

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

506.0

MHz

Bandwidth [BW]

fo ±34.5  [471.5 ~ 540.5]

MHz

Insertion Loss in BW

2.0

dB max

Ripple in BW

0.6

dB max

Return Loss in BW

15.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

15.0 dB min @ fo ±   [442.0  &   ]

MHz

12.0 dB min @ fo ±   [571.0  &   ]

MHz

60.0 dB min @ fo ±   [350.0  &   ]

MHz

dB min @ fo ±    [     &     ]

MHz

Group Delay Variation

6

ns max

Input Power

2.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃  to  +85℃

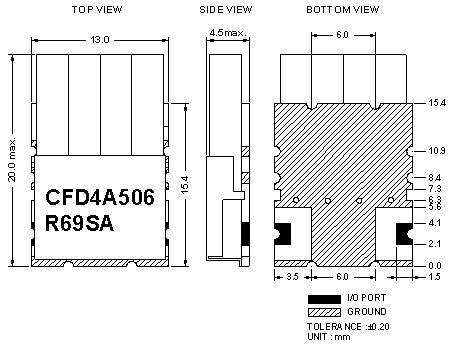

机械规格图

绘图数据



推荐的PC板模式

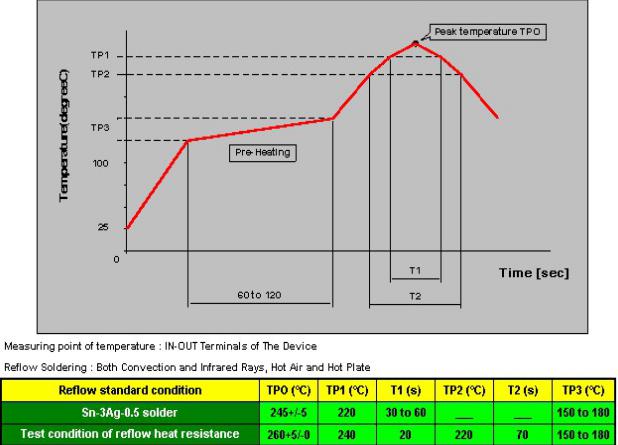

焊接条件
