Details description

CFK6C602N08FA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

602.0

MHz

Bandwidth [BW]

fo ±4.0 [ 598.0 ~ 606.0 ]

MHz

Insertion Loss in BW

3.5

dB max

Ripple in BW

0.8

dB max

Return Loss in BW

15.0

dB min

Attenuation

   RAbsolute Value

   £Relative  Value

6.0 dB min.  @ fo ± 8.0 [594.0 & 610.0 ]

MHz

20.0 dB min.  @ fo ± 12.0 [590.0 & 614.0 ]

MHz

40.0 dB min.  @ fo ± 50.0 [552.0 & 652.0 ]

MHz

dB min @ fo ±      [      &     ]

MHz

Group Delay Variation



ns max

Input Power

2.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃  to  +85℃

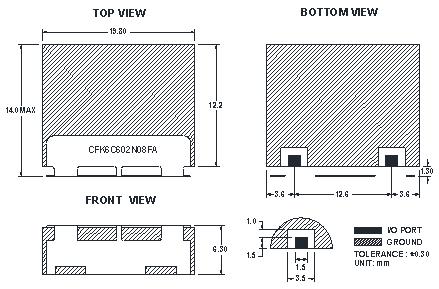

机械规格图

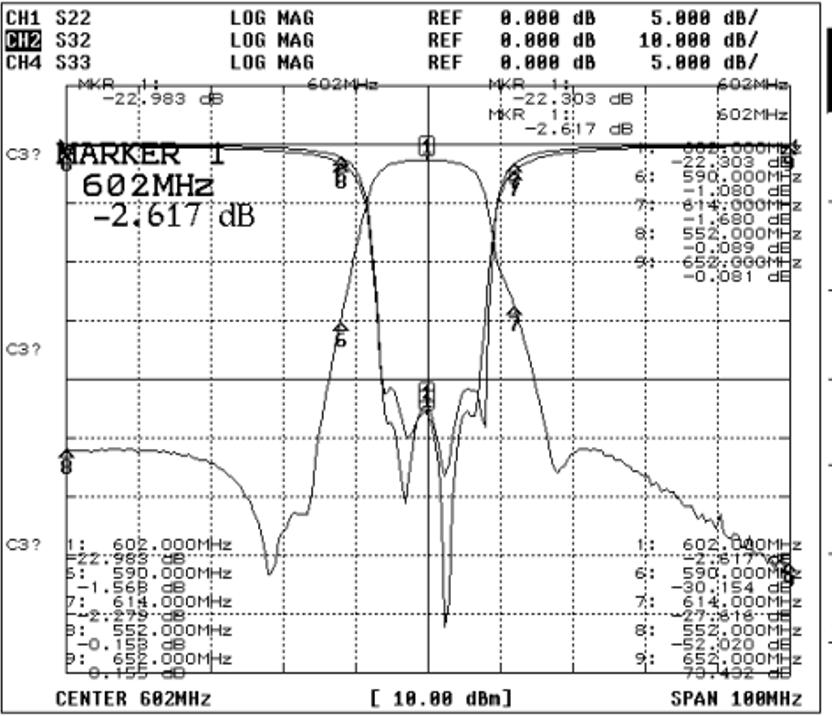

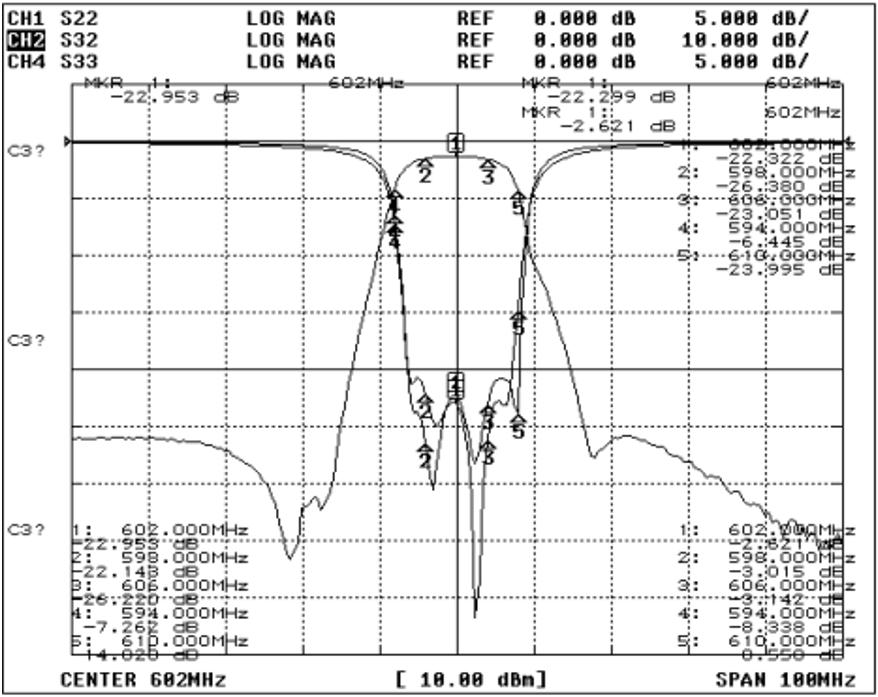

绘图数据



推荐的PC板模式

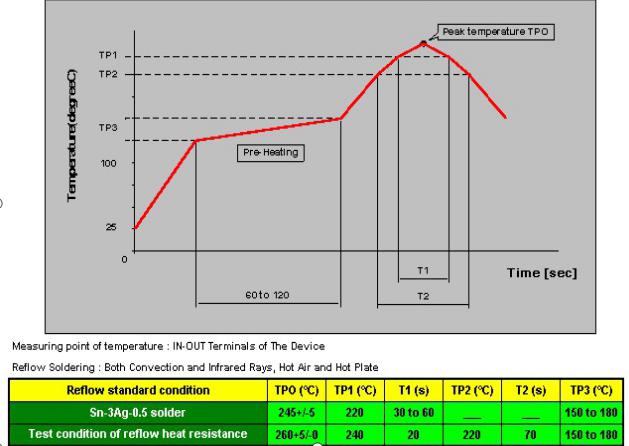

焊接条件
