Details description

CFK4C498N08FA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

498.0

MHz

Bandwidth [BW]

fo ±4.0 [494.0~502.0]

MHz

Insertion Loss in BW

3.0

dB max

Ripple in BW

0.8

dB max

Return Loss in BW

15.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

10.0 dB min @ fo ± 8.0  [490.0 & 506.0]

MHz

20.0 dB min @ fo ± 12.0  [486.0 & 510.0]

MHz

40.0 dB min @ fo ± 50.0  [448.0 & 548.0]

MHz

dB min @ fo ±      [      ~     ]

MHz

Group Delay Variation



ns max

Input Power

2

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

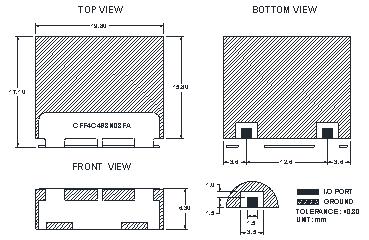

机械规格图

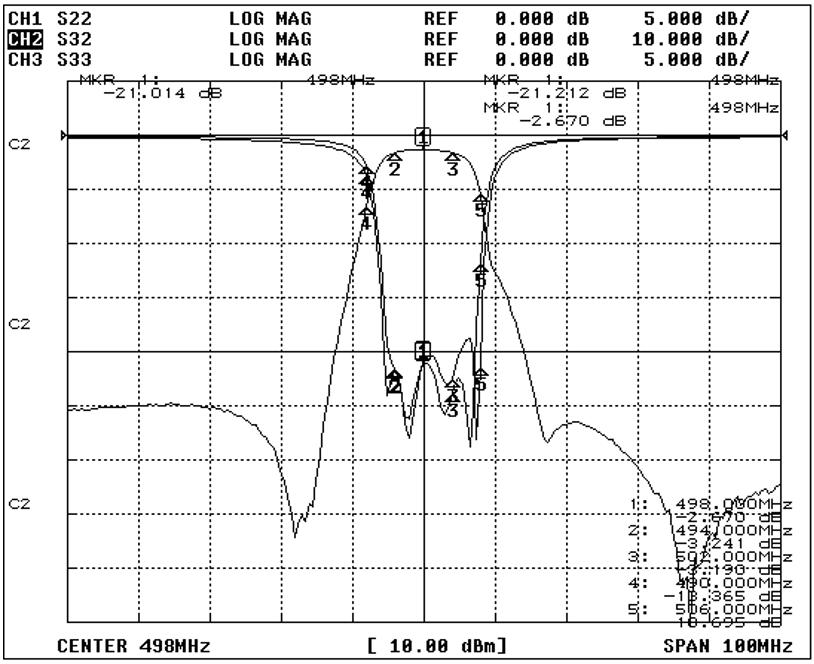

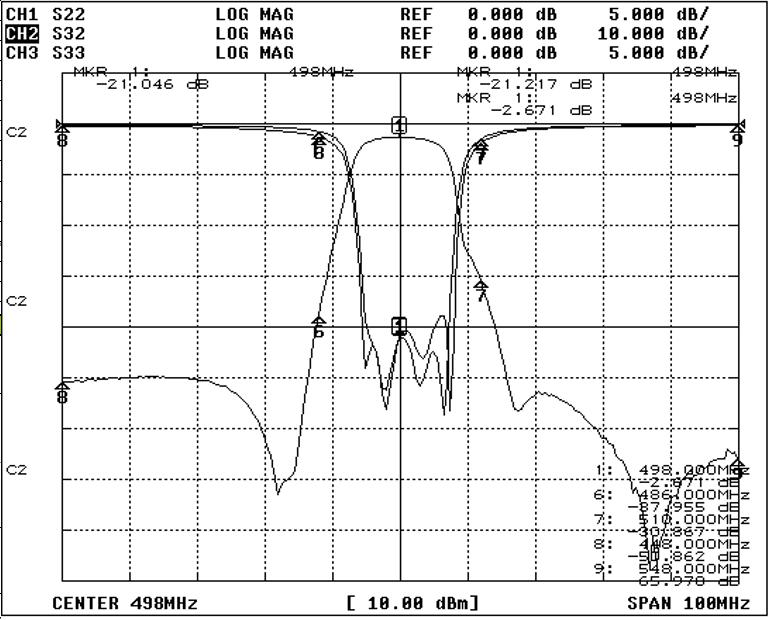

绘图数据



推荐的PC板模式

焊接条件
