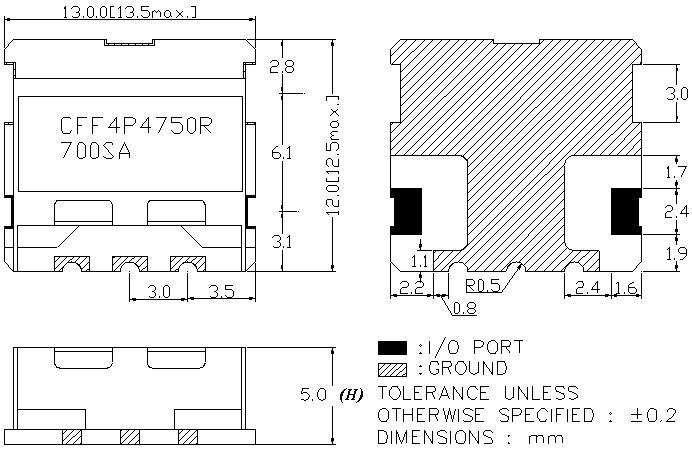

CFF4P4750R700SA

ITEMS

SPEC

UNIT

Center Frequency [fo]

4750.0

MHz

Bandwidth [BW]

fo ±350.0 [4400~5100]

MHz

Insertion Loss in BW

3.0

dB max

Ripple in BW

1.0

dB max

Return Loss in BW

15.0

dB min

Attenuation

   £ Absolute Value

   R Relative  Value

 55.0 dB min.  @  fo ±   [   2500.0  &    ]

MHz

35.0 dB min.  @  fo ±   [   6000.0  &    ]

MHz

dB min.  @  fo  ±  [          &    ]

MHz

 dB   min.   @  fo  ±  [         &     ]

MHz

Group Delay Variation

ns max

Input Power

2.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃
