CFF4P770R12SA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
770.0 |
MHz |
|

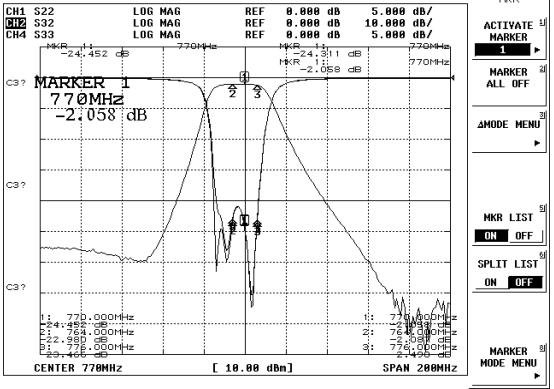

Bandwidth [BW] |
fo ±6.0 [764.0~776.0] |
MHz |
|
Insertion Loss in BW |
3.0 |
dB max |
|
Ripple in BW |
1.0 |
dB max |
|
Return Loss in BW |
18.0 |
dB min |
|

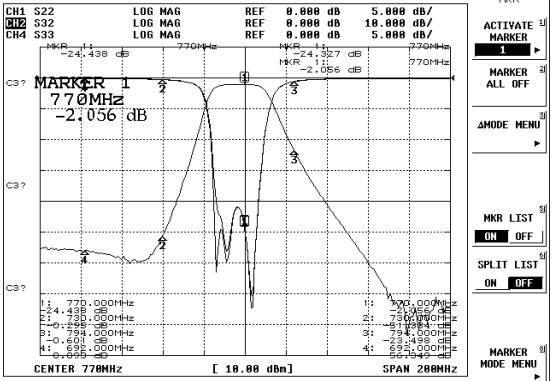

Attenuation R Absolute Value £ Relative Value |
30.0 dB min. @ fo ± [730.0 ~ ] |
MHz |
|
23.0 dB min. @ fo ± [794.0 ~ ] |
MHz |
|
|
55.0 dB min. @ fo ± [692 ~ ] |
MHz |
|
|
dB min. @ fo ± [ & ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
2.0 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

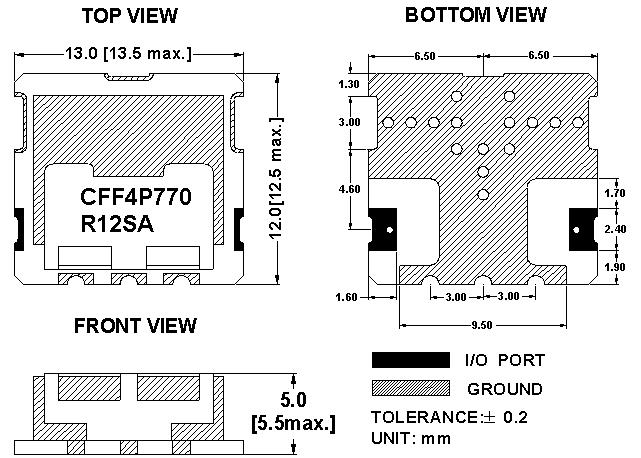

机械规格图
绘图数据

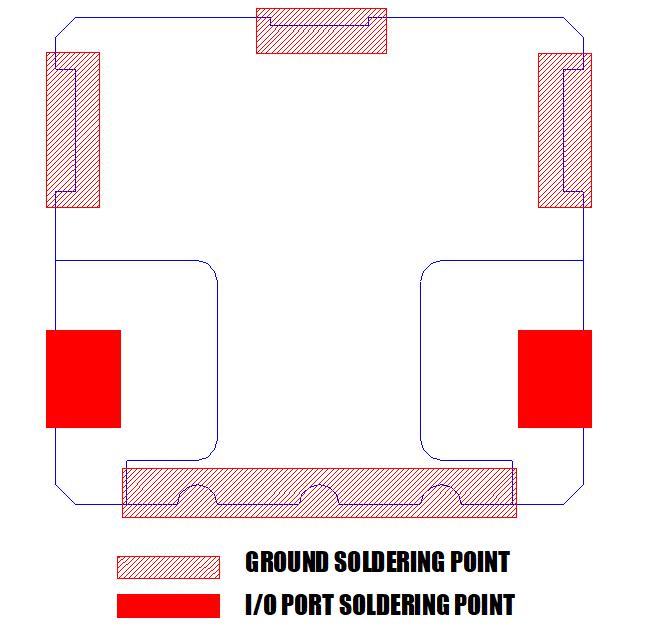

推荐的PC板模式
