CFK8P2140N20FA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
2140 |
MHz |
|
Bandwidth [BW] |
fo ±10 [2130 ~ 2150 ] |
MHz |
|
Insertion Loss in BW |
13.0 |
dB max |
|
Ripple in BW |
1.0 |
dB max |
|
Return Loss in BW |
1.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
5dB min @ fo ± [ 2127.5 ] |
MHz |
|
5dB min @ fo ± [ 2152.5 ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
2 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

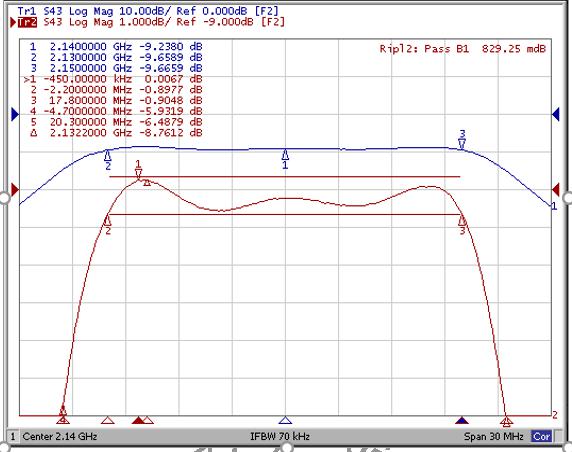

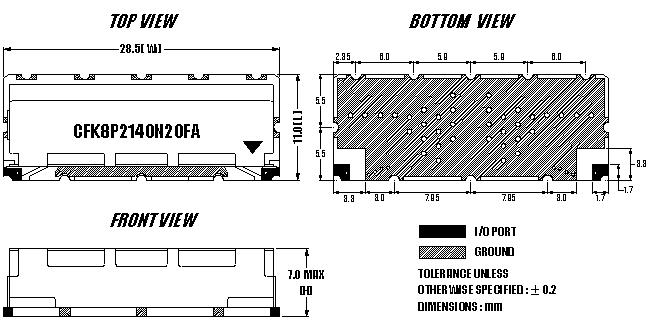

机械规格图
绘图数据

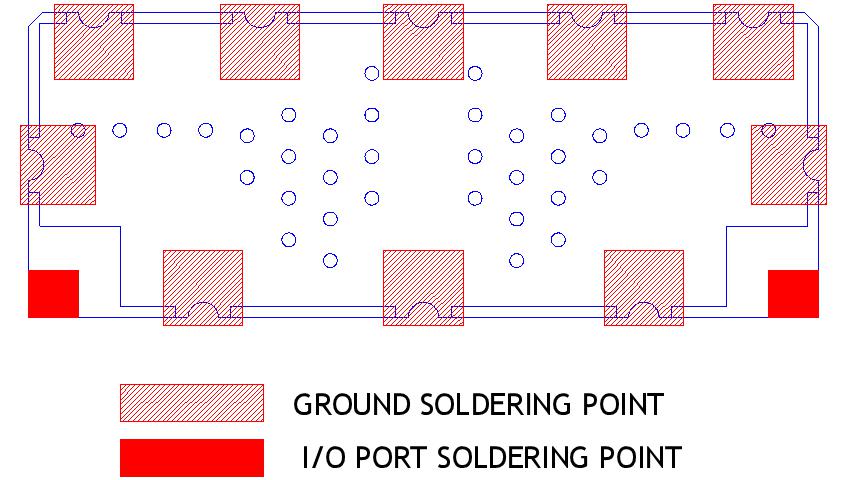

推荐的PC板模式
焊接条件
