Details description

CFK4P1950N20FA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

1945

MHz

Bandwidth [BW]

fo ±20  [1940  ~  1960 ]

MHz

Insertion Loss in BW

1.5

dB max

Ripple in BW

0.2

dB max

Return Loss in BW

18.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

50dB min @ fo ± [2130   ~ 2150  ]

MHz

   60dB min @ fo ± [824   ~ 894  ]

MHz

dB min @ fo ± [  ~  ]

MHz

dB min @ fo ± [  ~  ]

MHz

Group Delay Variation



ns max

Input Power

2

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

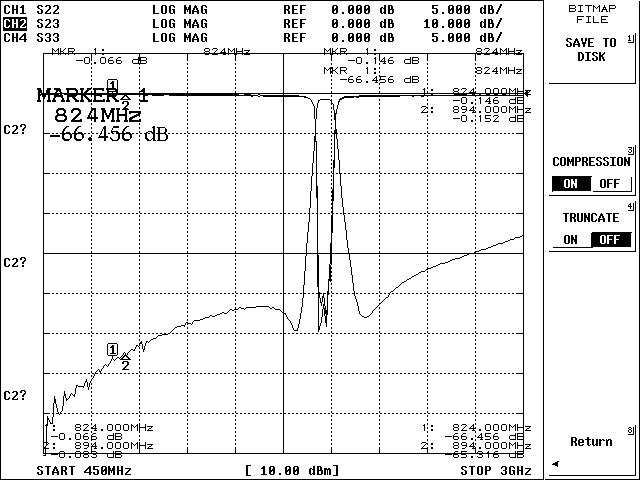

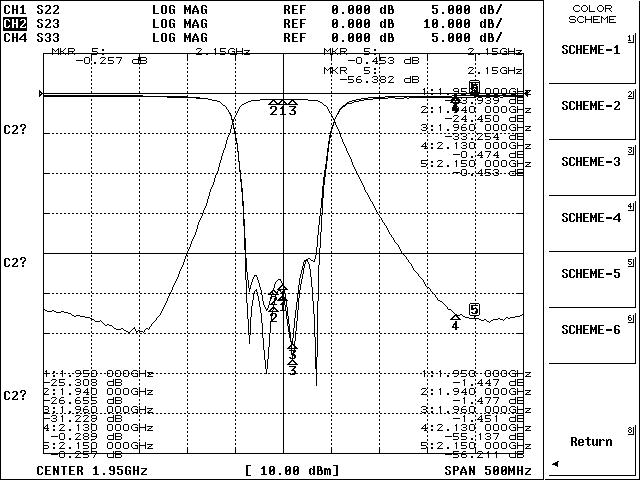

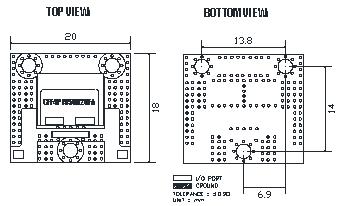

机械规格图

绘图数据



推荐的PC板模式

焊接条件
