Details description

CFF4P900R30SC

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

900.0

MHz

Bandwidth [BW]

fo±15 [ 885.0 ~915.5 ]

MHz

Insertion Loss in BW

3.0

dB max

Ripple in BW

0.8

dB max

Return Loss in BW

16.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

20.0 dB min.  @ fo ±  [930~960.0]

MHz

  dB min @ fo ±    [    &   ]

MHz

  dB min @ fo ±    [    &   ]

MHz

dB min @ fo ±   [     ~   ]

MHz

Group Delay Variation



ns max

Input Power

2

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

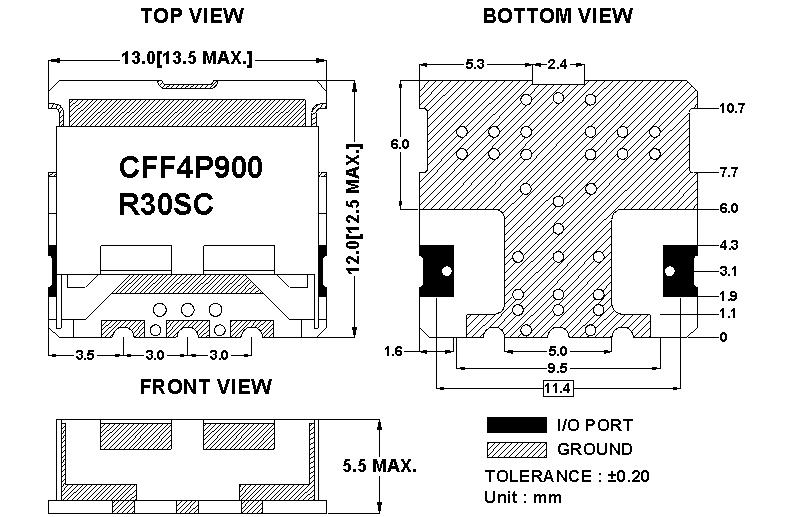

机械规格图

绘图数据

推荐的PC板模式

焊接条件
