CFF4P1795R20SB
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
1795 |
MHz |
|
Bandwidth [BW] |
fo ±10 [1785~1805] |
MHz |
|
Insertion Loss in BW |
2.7 |
dB max |
|
Ripple in BW |
0.5dB |
dB max |
|
Return Loss in BW |
17.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
40.0 dB min @ DC~1500 |
MHz |
|
18.0 dB min @ 1500~1745 |
MHz |
|
|
28.0 dB min @ 1845~3000 |
MHz |
|
|
dB min @ fo ± [ ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
2 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

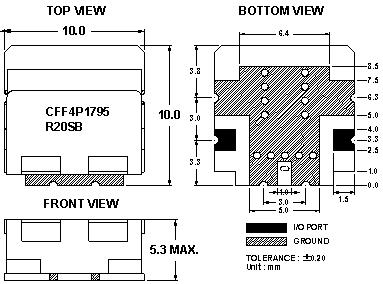

机械规格图

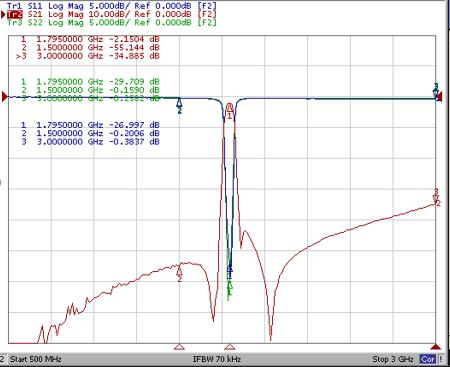

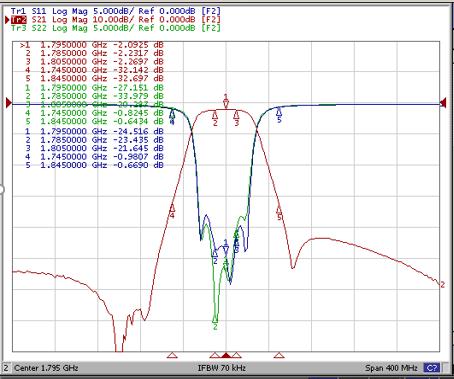

绘图数据

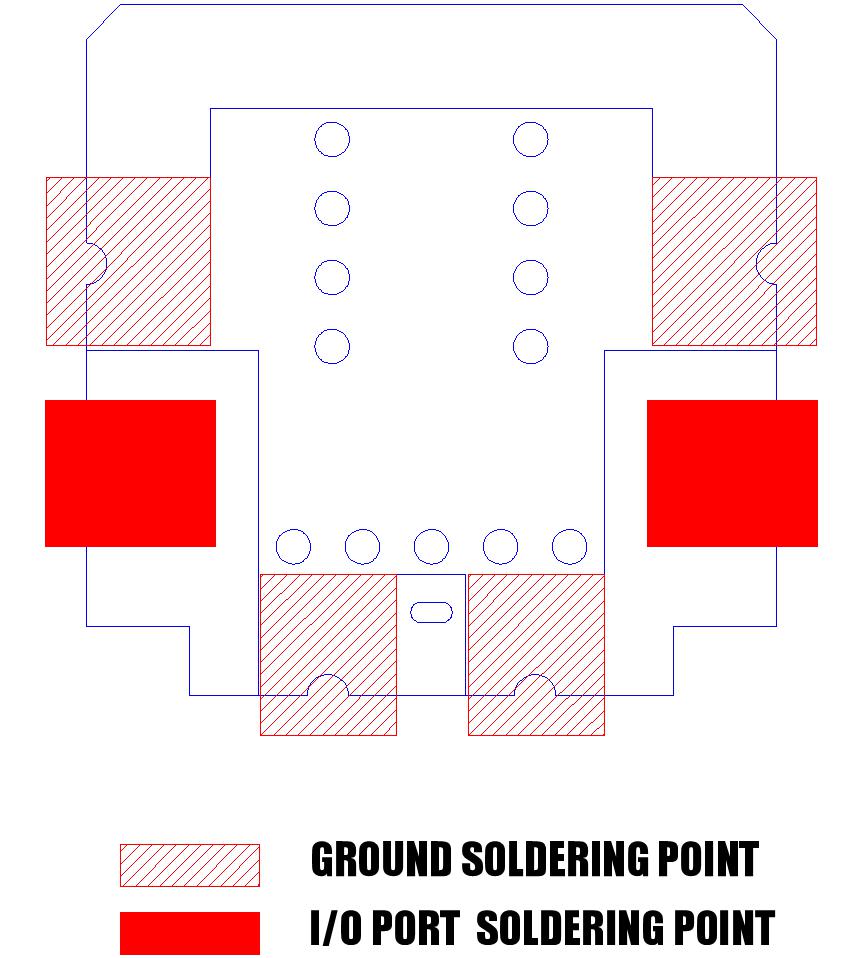

推荐的PC板模式
焊接条件
